ISO FLEX DUCT
  Remark

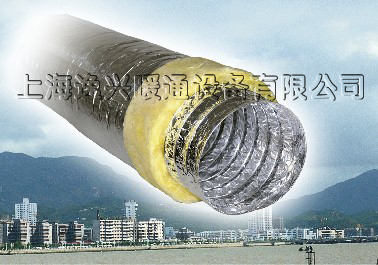

ISO FLEX DUCT
·Aluminium/polyester lining with well-balanced steel spiral internal duct
·16-20kg/m3 density and 25mm thick-ness Glass fiber insulation
·Aluminium/polyester external duct

TECHNICAL PROPERTIES

ALU30
ALU40
ALU20
Material
2Aluminium 1Polyester
2Aluminium 2Polyester
1Aluminium 1Polyester
Glass wool
16-20kg/m3 density
25mm thickness
16-20kg/m3 density
25mm thickness
16-20kg/m3 density
25mm thickness
Outer sleeve
1Aluminium 1Polyester
1Aluminium 1Polyester
1Aluminium 1Polyester
Available Diameters
¢82-¢630mm
¢82-¢630mm
¢82-¢630mm
Air Velocity
-30℃-150℃
-30℃-150℃
-30℃-150℃
Temperature Range
30m/s
30m/s
30m/s
Operating Pressure
2500Pa
2500Pa
2500Pa
Standard Length
10m
10m
10m
Packing Single
Cardboard Box Single
Cardboard Box Single
Cardboard Box
Fire Certificates
LNE M1
EN-13501 B
LNE M1
EN-13501 B
LNE M1
EN-13501 B
