COMBI FLEX DUCT
　　Remark

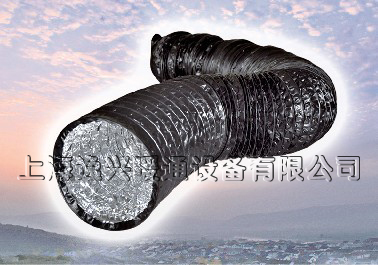

COMBI FLEX DUCT
·Alu. Flex. duct covered with 100micronPVC foil.
·High strength, not easy to be broken.
·Ideal for using in general purpose exhaustApplications.

TECHNICAL PROPERTIES


COMBI30
COMBI20
Material
2Aluminium 1Polyester+PVC foil(100micro)
1Aluminium 2Polyester+PVC foil(100micro)
Available Diameters
￠82-￠630mm
￠82-￠630mm
Air Velocity
-30℃-150℃
-30℃-150℃
Temperature Range
30m/s
30m/s
Operating Pressure
2500Pa
2500Pa
Standard Length
10m
10m
Packing Single
Cardboard Box Single
Cardboard Box Single
Fire Certificates

GB/T8624-2006
B级

GB/T8624-2006
B级
